Custom Solenoids and Valves for Locking Applications

TLX designs and develops custom solenoids and valves for locking applications, expertly tailored to your exact needs.

Bistable Latching Solenoid

This light-duty solenoid does not require steady-state power and is designed to fit in small spaces.

Low-Profile Latching Solenoid Lock

This two-position, latching solenoid lock offers zero power consumption in both the engaged and disengaged position.

Long-Stroke Latching Solenoid

This latching solenoid needs no power to hold in either position and runs efficiently on 4 AA batteries.

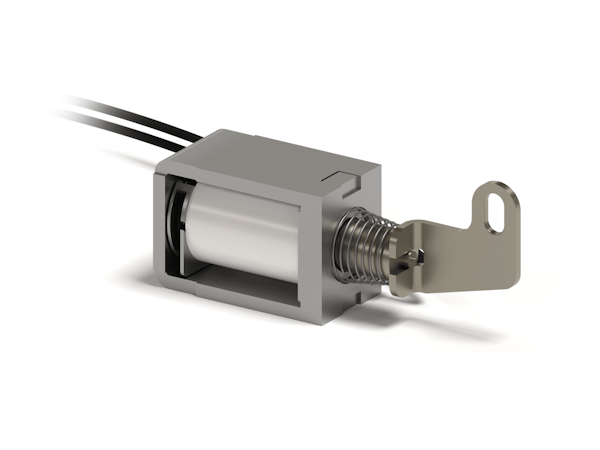

D-Frame Solenoid

This solenoid designed to work in the air intake stream of a vehicle and can be designed as a constant current or latching solenoid.

Three-Position Push Pull Solenoid

This continuous duty “three-position” solenoid example features a push-pull from a center position and allows for a tighter tolerance.

Magnetic Locking Solenoid

Latching solenoids provide an excellent solution for applications requiring a fast response time and low power consumption.

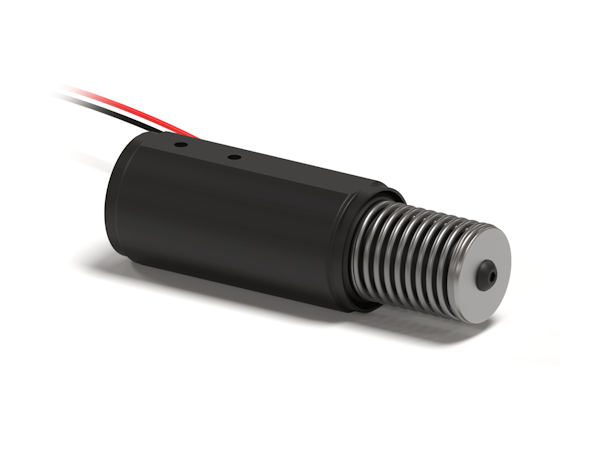

Manual Reset Latching Solenoid

This solenoid does not need constant power to hold position, releases quickly when activated, and remains in the released position until manually reset.

Miniature U-Frame Solenoid

This example of a continuous duty solenoid is miniature in size but with a relatively long stroke and high force.

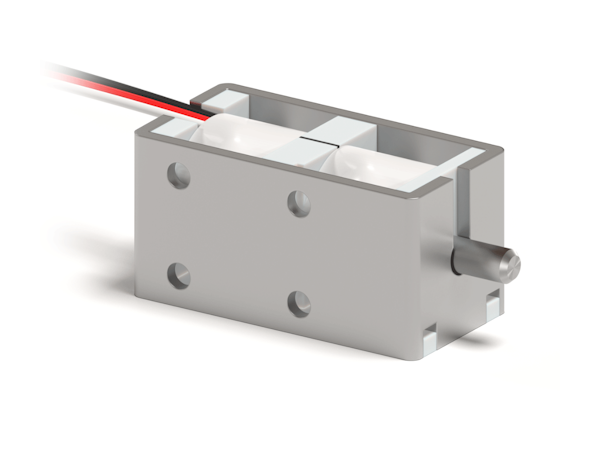

Bidirectional Latching Solenoid

Compact design and low power consumption make this solenoid ideal for battery-operated applications.

Open Frame Latching Solenoid

The compact design and low cost construction of this open frame latching solenoid allow for flexibility in a variety of applications.

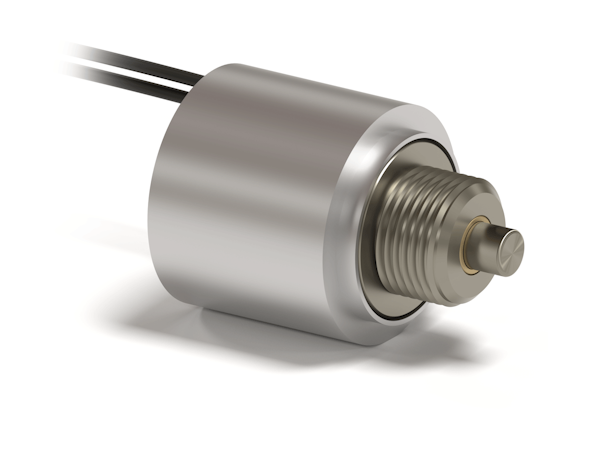

Pull Type Locking Solenoid

This example of a continuous duty solenoid remains in the locked position utilizing no power.

Residual Magnetism Latching Solenoid

This solenoid example is a linear on-off design with a built-in latching feature that holds the solenoid in position using residual magnetism.

Three-Position Latching Solenoid

This latching solenoid is an example of a three-position device with spring center and latch to end positions.

Latching Solenoid

Used only a short voltage pulse to actuate and maintained position without constant power.

Miniature Manual Reset Latching Solenoid

This latching solenoid example is manually actuated and holds without the use of power making it ideal for applications requiring low power consumption.

View All Solenoids and Valves
