Locking Solenoids for Metal Detection Systems

A manufacturer of metal detection equipment required a component to activate a failsafe system when metal was detected in the product stream. The solution needed an extremely fast response time to immediately stop equipment when metal was detected.

Customer Problem

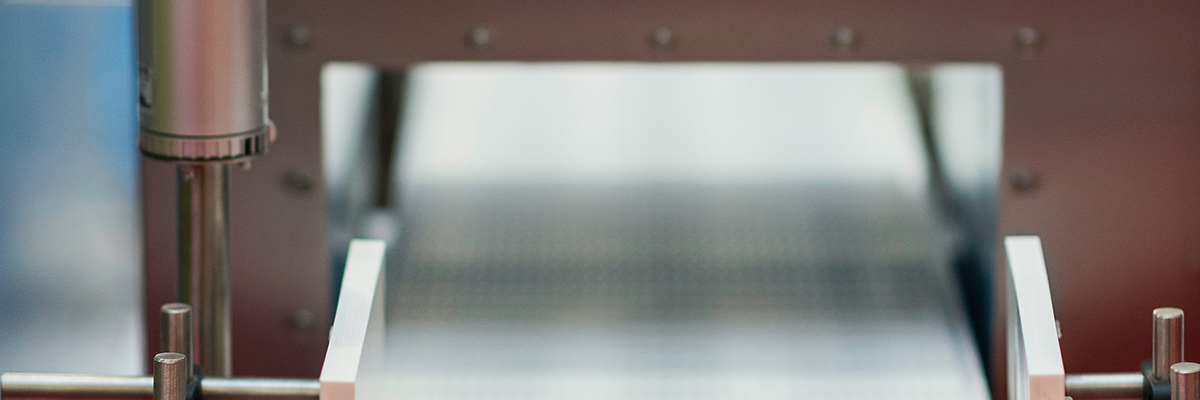

Metal detection systems serve as a vital second check for metal contamination control programs in a food processing environment. A manufacturer of metal detection equipment required a component to activate a failsafe system when metal was detected in the product stream. The solution needed an extremely fast response time to immediately stop equipment when metal was detected.

The TLX Solution

Based on the requirements, TLX determined that the best solution was a custom latching solenoid. A short pulse would de-latch the solenoid quickly, activating the failsafe system on the equipment. The solenoid would remain in this de-latched position (using no power) until receiving a second pulse of opposite polarity. Compact size and low power consumption made this latching solenoid an excellent, cost-effective solution for the metal detection equipment.

View Design Solution

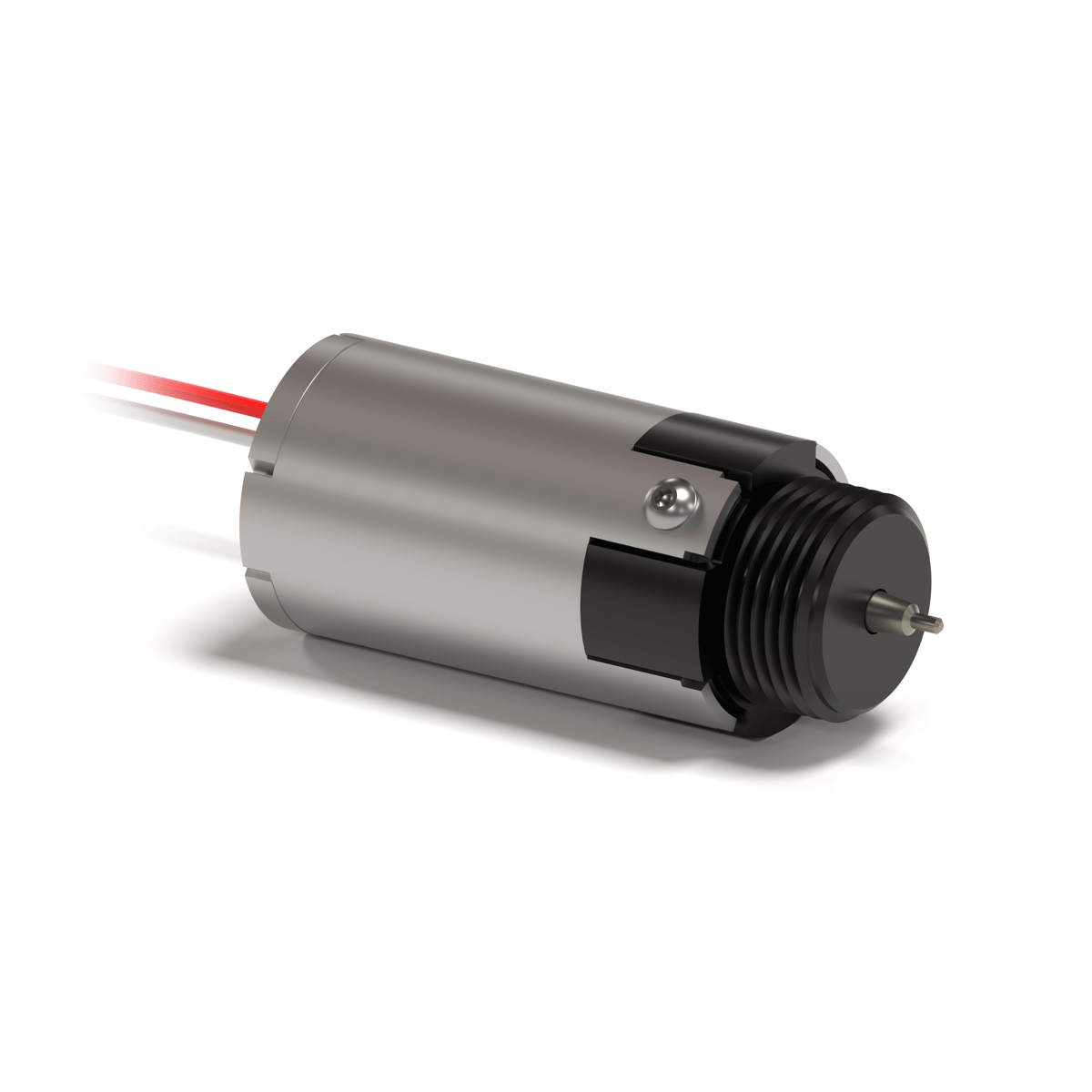

Magnetic Locking Solenoid

Stroke: 4 mm

Coil resistance at 20°C: 16 Ω

Supply voltage: 9 Vdc

Reaction speed: 12-15 ms

Minimum coil operating voltage: 4.0 Vdc

Maximum coil operating voltage: 9.9 Vdc

Force to extend (4.0 Vdc): 3.5 N

Force retracted (4.8 Vdc): 6.7 N

All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.
